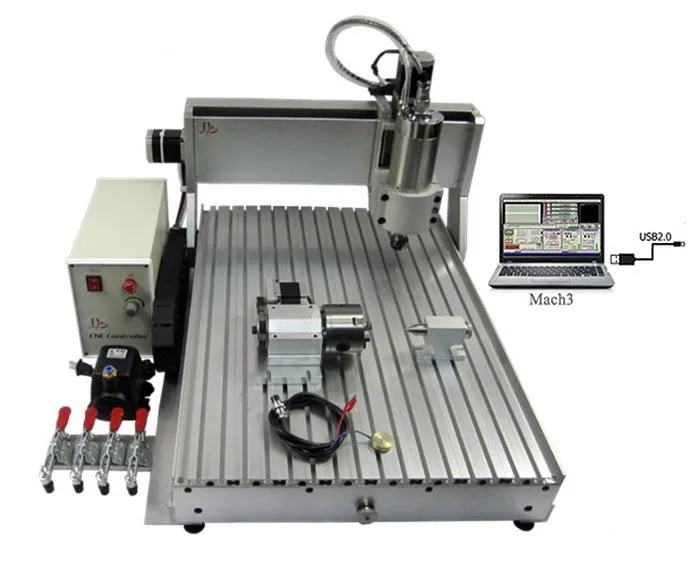

1 5KW Spindle 4 axis CNC router 6040 USB desktop wood lathe cutting machine with free cutter vise collet drilling kits in Wood Routers from Tools

1 5KW Spindle 4 axis CNC router 6040 USB desktop wood lathe cutting machine with free cutter vise collet drilling kits in Wood Routers from Tools
1 5KW Spindle 4 axis CNC router 6040 USB desktop wood lathe cutting machine with free cutter vise collet drilling kits in Wood Routers from Tools

Product Specification

CNC or Not: CNC

Brand Name: NoEnName_Null

Condition: New

Model Number: CNC machine 6040Z-VFD 1.5KW USB 4axis

Machine Dimensions: 810X640X480mm

Engraving area: 600X400mm

Z-Axis Stroke: 80mm

Type of screw: Ball screw 1605

Spindle motor: 1.5KW VFD water cooling spindle

Collet type: ER11,1/8"(3.175mm) Collet

Repeat positioning Accuracy: 0.03mm

Description:

CNC 6040 4axis (15)

CNC Router Engraver/Engraving Drilling and Milling Machine

LYCNC6040Z-VFD1.5KW USB 4axis



Pls notice :

our package has CD ,the CD will include detail english manual and operate video

(it will teach you every step ) and Mach3 software so on ,

1 year warranty ,



Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis.

More Precise Stepping Motor
The engraving process is visible as controlled by computer
Simple operation and installation
1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty
 Shipping by DHL FEDEX UPS with tracking number


Technical Parameters

LYCNC6040Z-VFD1.5KW USB 4axis parameters:

Machine Dimensions

 810X640X480mm

Rack material

 6061 and 6063 Hard aluminum alloy
 (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area

 600X400mm

Z-Axis Stroke

 80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

 ≤80mm

Rail typ

 Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw

 Ball screw 1605, Pitch 4mm

Spindle motor

 1.5KW VFD water cooling spindle , 0-24000r/min

Collet type

 ER11,1/8"(3.175mm) Collet

Stepper motor and drive

 two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed

 4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy

 0.03mm

Communication interface

 USB port

Software Compatability

 Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

 G code/.nc/.ncc/.tab/.txt

Machine weight

 68kg

Rotation Axis (4th Axis)

Description:



Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type / 2A  two phase 4 line

Positioning accuracy: 0.075 °

 The machine already assembled & tested well,

can directly use after take them out from package

6040Z (0)

Free gift :

2 pcs ER11 collet (random size )

10 pcs cutters

4pcs cnc clamps

1pcs Vise

20pcs drilling cutters

10 pcs PCB drilling kits



gift 6040Z (1) 6040Z (2) 6040Z (3) 6040Z (4) 6040Z (5) 6040Z (6)
6040Z (7) 6040Z (8) 6040Z (9)
